UFO02 LED High Bay Details
Performance Parameters
● Luminous Efficiency:190lm/w；
● Input Voltage: AC100-277V 50/60Hz
● Power: 70W/100W/110W/120W/150W
● Color temperature: 3000K 4000K 5000K 5700K
● Color Rendering Index:Ra>70
● Power Factor: >0.95
● Beam Angle: 60° 90° 120°
● Working Temperature: -20~48℃
● Storage Temp: -40~80℃
● Environment Humidity: ＜95%
● LED Type:SMD2835
● Lifespan: >50,000hours● On-off times:>100,000 Times

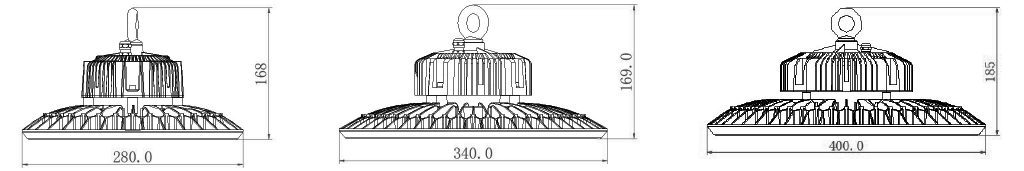

Product Size
70W 100W/110W 120W/150W
Product Model
| Model | Color Temp | Power | Luminance Efficacy | Size(mm) | Carton Size(mm) | GW/1PCS |
|---|---|---|---|---|---|---|
| SL-UFOA00-70Y-XXXX-B | 4000/5000/5700K | 70W | 13300 | Φ280*H168 | L320*W320*H185 | 3.5kg |
| SL-UFOA00-100Y-XXXX-B | 100W | 19000 | Φ340*H169 | L370*W370*H185 | 4.2kg | |
| SL-UFOA00-110Y-XXXX-B | 110W | 20900 | Φ340*H169 | L370*W370*H185 | 4.2kg | |
| SL-UFOA00-120Y-XXXX-B | 120W | 22800 | Φ400*H185 | L440*W440*H195 | 6.2kg | |
| SL-UFOA00-150Y-XXXX-B | 150W | 28500 | Φ400*H185 | L440*W440*H195 | 6.2kg |
Model name description: "SL-UFOA00-150Y-XXX-B".
“SL” indicates the name of company producing the product;
“UFO” indicates the product is a LED High Bay;
“A00” indicates the voltage of the product;
“150” indicates the power of the product;
“Y” indicates the colour temperature of the product. Where the
“Y” can be N=3000K, M=3500K, L=4000K, K=4500K, C=5000K, H=5700K represents color temperature
“XXXX” represent light angle, it can be R060,R090,R120
“B” indicates the shape size;

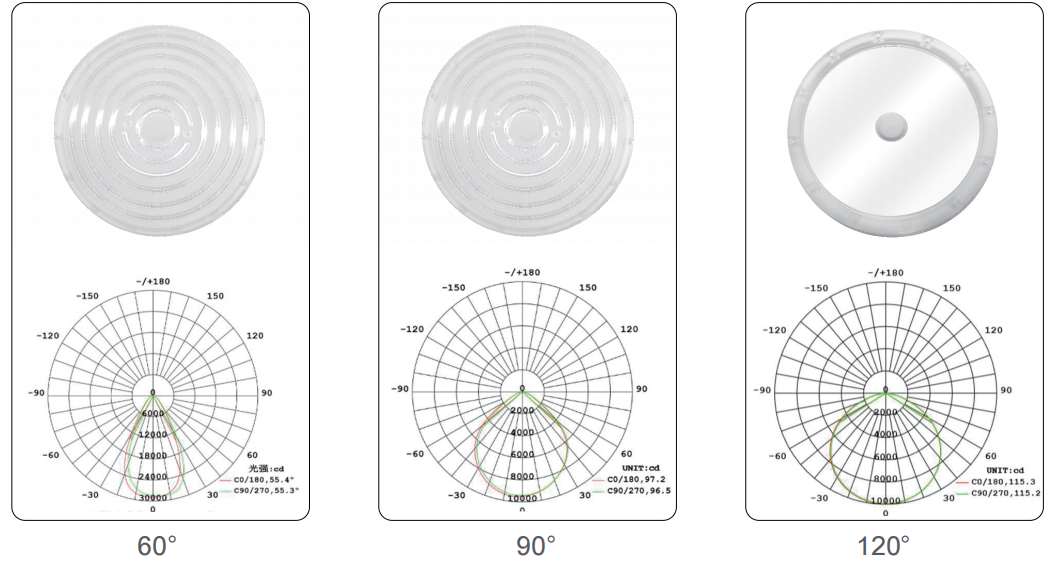

Beam Angle

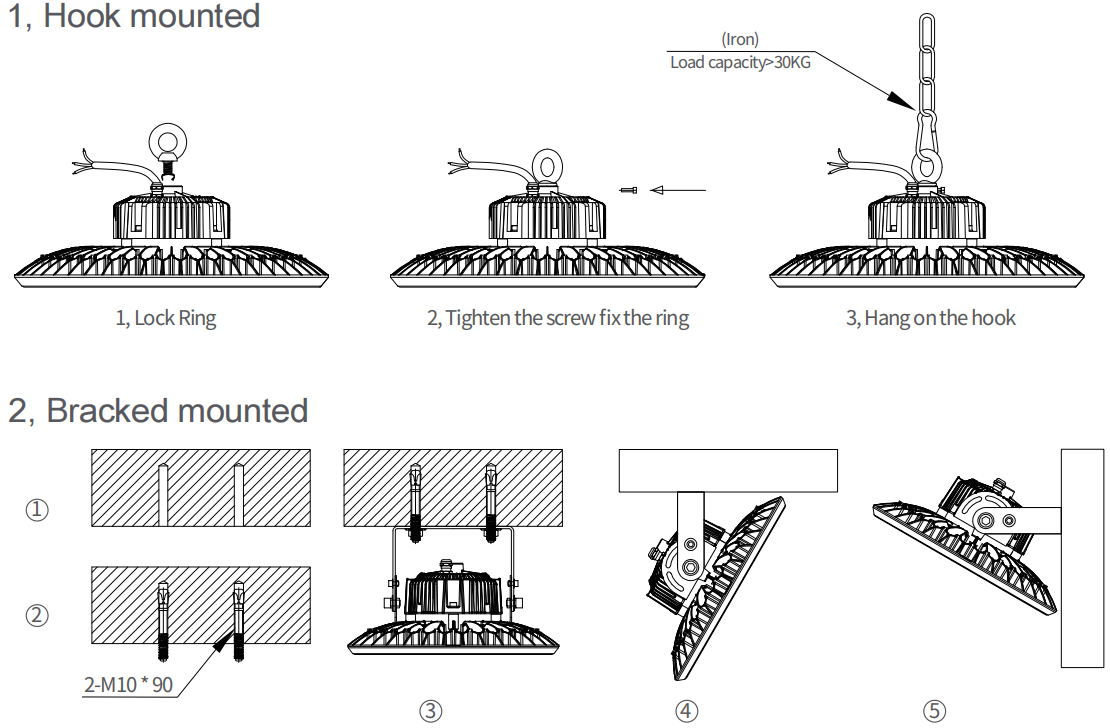

Installation method

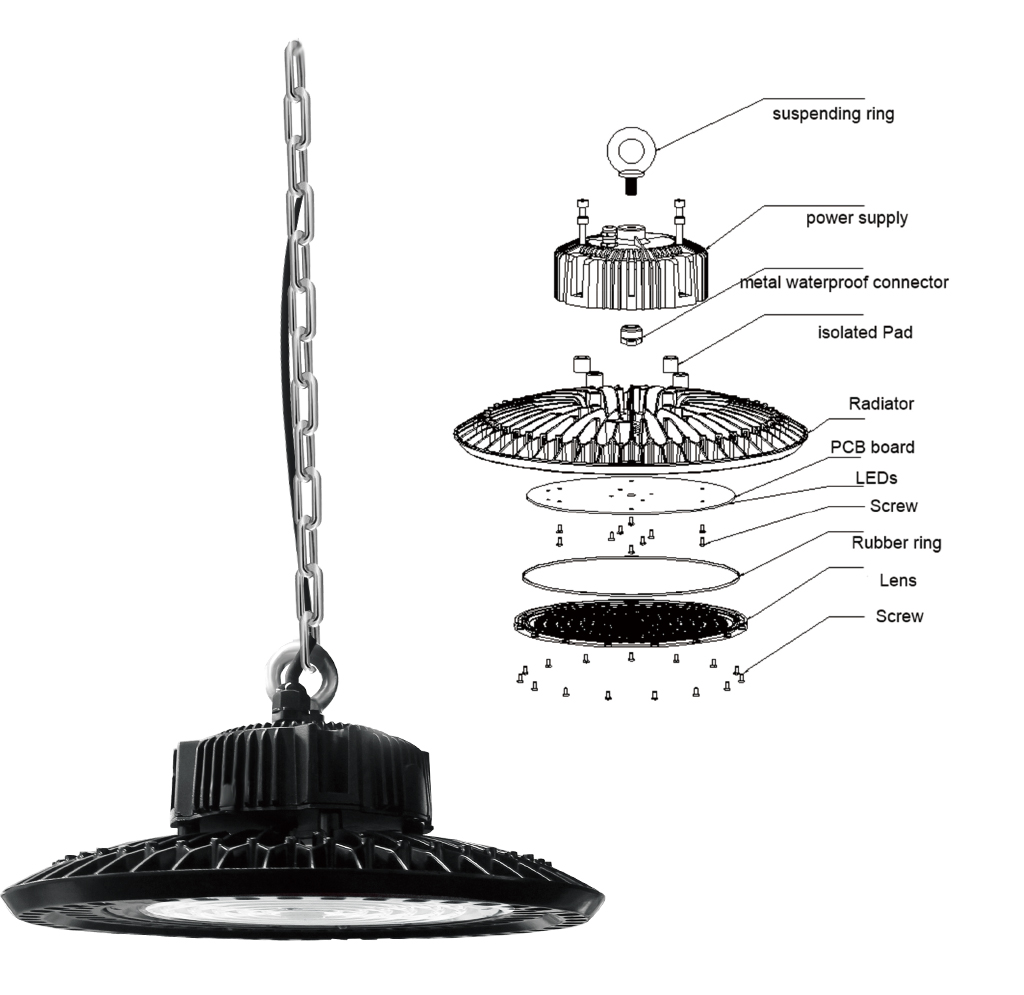

Structure drawing
