FL02 LED Flood Light Details
Performance Parameters
● Luminance Efficacy: Clear Cover:80-100lm/W
● Input Voltage: AC100-265V 50/60Hz
● Power Consumption: 30W 50W 100W 200W
● Color Temperature:3000K 4000K 5000K 5700K
● CRI>80
● PF>0.95
● Beam Angle: 40°
● Working Temperature: -40~80℃
● LED Type: COB 30W/50W
● Lifespan: 50,000hours
● Driver Type: Isolation Driver
Product Model
| Model No. | Color Temp* | Power | Lumen(lm) | Size(mm) | Carton Size(mm) | G.W |
|---|---|---|---|---|---|---|
| SL-TGA00-30W | 3000K/4000K/5000K/5700K | 30W | 2400 | 245*160*75 | L285*W200*H120 | 2.5KG |
| SL-TGA00-50W | 50W | 4000 | 220*200*110 | L260*W240*H150 | 3.0KG | |
| SL-TGA00-100W | 100W | 8000 | 300*280*120 | L340*W320*H160 | 6.5KG | |
| SL-TGA00-200W | 200W | 16000 | 416*273*120 | L450*W320*H160 | 7.5KG |
Drawing of Prod
| 30W | 50W | 100W | 200W | |
|---|---|---|---|---|
| A | 245mm | 220mm | 300mm | 416mm |
| B | 160mm | 200mm | 280 | 273mm |
| C | 73mm | 110mm | 120mm | 120mm |

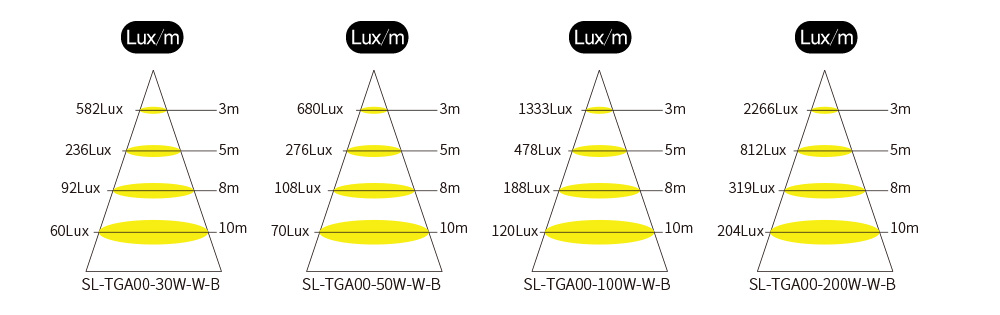

Photometric Data
