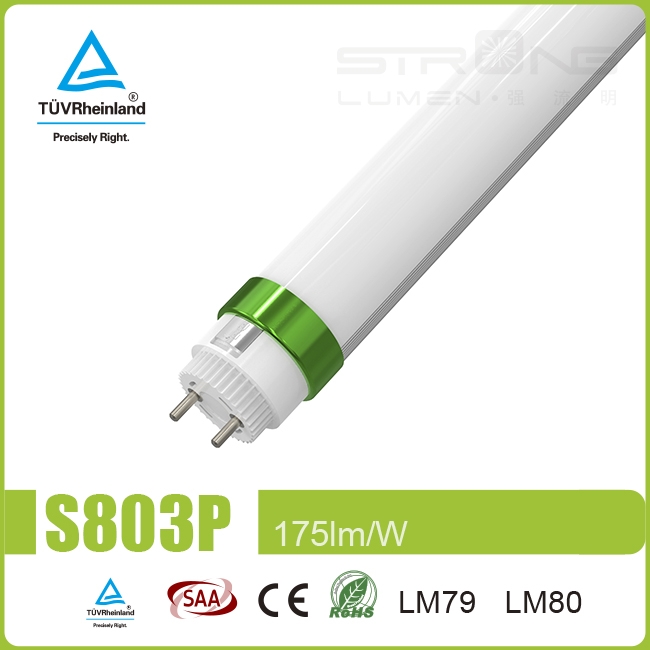

S803T Plus T8 TUBE Lighting Details
Specifications:
● Frosted Cover: 175lm/w；
● Clear Cover:180lm/W
● Input Voltage:AC100-240V 50/60Hz
● Power:9W/12W/18W/20W/25W/30W/
● Color temperature:3000K 4000K 5000K 6000K
● Color Rendering Index: >80
● Power Factor:>0.95
● Beam Angle:140°
● Working Temperature:-20~48℃
● Storage Temp:-40~80℃
● Environment Humidity:＜95%
● LED Type:2835 LED，Epistar
● Lifespan:>50,000hours
● On-off times:>100,000 Times
● Rotatable end cap:Available
Product Features:
● Pretty and elegant appearance,G13 fixed or rotating end cap is available.
● Colorful metal rings available,Blue,Green,Silver,Red and Gold.
● ODM service available,Laser print customer LOGO and customer exclusive lable.
● 6063 Aluminum shell,Japan PC cover,long lifespan.
● Professional design of optics,no shadow,no light spot.
● Mainly used in factory,supermarket,carpark,hospital and school.
Product Model
| Model No. | Length | Power | Lumen | Size(mm) | Carton Size(cm) | G.W/25PCS |
|---|---|---|---|---|---|---|
| SL-DGA00-209WT-G8-P | 2ft | 9W | 1575lm | Ø26*L588 | L66*W22*H22 | 6.70KG |
| SL-DGA00-312WT-G8-P | 3ft | 12W | 2100lm | Ø26*L892 | L95*W22*H22 | 10.60KG |
| SL-DGA00-412WT-G8-P | 4ft | 12W | 2100lm | Ø26*L1198 | L125*W22*H22 | 12.90KG |
| SL-DGA00-418WT-G8-P | 4ft | 18W | 3150lm | Ø26*L1198 | L125*W22*H22 | 12.90KG |
| SL-DGA00-420WT-G8-P | 4ft | 20W | 3500lm | Ø26*L1198 | L125*W22*H22 | 12.90KG |
| SL-DGA00-520WT-G8-P | 5ft | 20W | 3500lm | Ø26*L1498 | L156*W22*H22 | 14.90KG |
| SL-DGA00-525WT-G8-P | 5ft | 25W | 4375lm | Ø26*L1498 | L156*W22*H22 | 14.90KG |
| SL-DGA00-530WT-G8-P | 5ft | 30W | 5250lm | Ø26*L1498 | L156*W22*H22 | 15.00KG |
Remarks: “W”means 6000K. 3000K ,4000K available, Only change “W” to “N”,“L” in Model No.
Drawing of Products
| 2feet (0.6m) | 3feet (0.9m) | 4feet (1.2m) | 5feet (1.5m) | 8feet (2.4m) | |
|---|---|---|---|---|---|
| A | 602mm | 906mm | 1213mm | 1513mm | 2362mm |
| B | 588mm | 892mm | 1198mm | 1498mm | 2348mm |
| Photometric Data |
  Installation  Case General fluorescent tube replacment，e.g. Offics,Retail,Education, Commercial & Industrial  |
