S502 Integrated T5 LED Tube Details
Performance Parameters
● Luminance Efficacy: Frosted Cover: 110lm/w.
● LED Type: 2835 LED,Epistar
● Input Voltage:AC100-240V
● CCT: 3000K 4000K 5000K 6000K
● CRI>80
● PF>0.9
● Beam Angle: 160°
● Operation Temperature: -20~48℃ (-4~104℉)
● Environment Humidity: ＜95%
● Lifespan: 30,000hours
● Driver Type: Internal Driver
Product Model
| Model No. | Length | Power | Lumen | Size(mm) | Carton Size(cm) | G.W/25PCS |
|---|---|---|---|---|---|---|
| SL-DGA00-60WT-G5-L | 2ft | 9W | 990lm | Ø22*L570 | L66*W22*H22 | 7.60KG |
| SL-DGA00-80WT-G5-L | 3ft | 12W | 1430lm | Ø22*L870 | L95*W22*H22 | 8.35KG |
| SL-DGA00-120WT-G5-L | 4ft | 18W | 1980lm | Ø22*L1170 | L125*W22*H22 | 9.85KG |
| SL-DGA00-150WT-G5-L | 5ft | 22W | 2640lm | Ø22*L1470 | L156*W22*H22 | 11.10KG |
*Remarks: “W”means 6000K. 3000K ,4000K available, Only change “W” to “N”,“L” in Model No.
Drawing of Products
| 2feet(0.6M) | 3feet(0.9M) | 4feet(1.2M) | 5feet(1.5M) | 8feet(2.4M) | |
|---|---|---|---|---|---|
| A | 570mm | 875mm | 1175mm | 1475mm | 2362mm |
| B | 566mm | 871mm | 1171mm | 1471mm | 2348mm |
Product Features● Integrated design ,no need the fixtures.● T5 internal driver ,high efficiency power source，,lower power consumption ,more saving energy. <br />● Import 6063 Aluminum shell, Oxidation surface, long last life time.● Professional optical design, uniformly distributed, perfect performance.● Qualify 2835 led chips lower lumen decrease.● Mainly used for supermarket,hotel, restaurant, school.

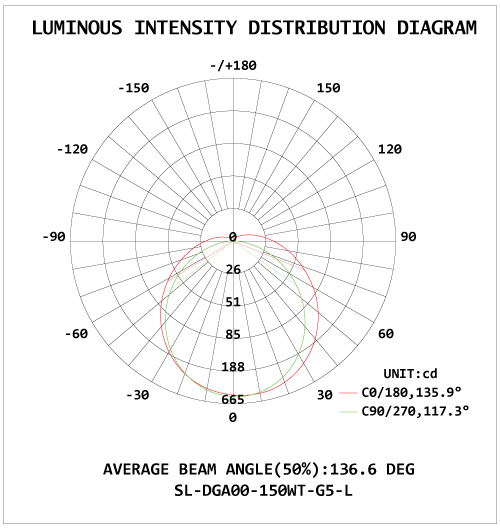

Photometric Data

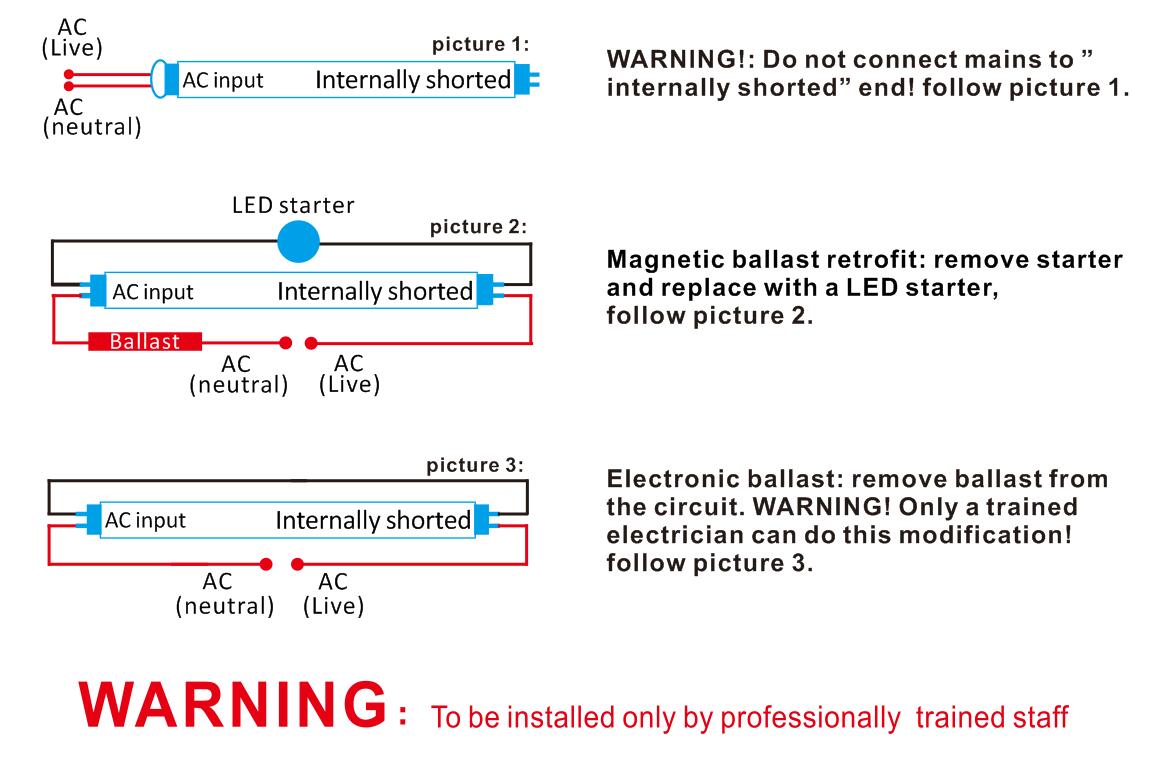

Installation
