S808 IP65 T8 LED TUBE Details
Performance Parameters
● Luminance Efficacy: Frosted Cover:130lm/w
● Input Voltage:AC100-240V
● Power Consumption: 9W/13W/18W/25W/
● Color Temperature:3000K 4000K 5000K 6000K
● CRI>80
● PF>0.95
● Beam Angle: 180°
● Operation Temperature: -20~48℃ (-4~104℉)
● LED Type: 2835 LED,Epistar
● Lifespan: 50,000hours
● Driver Type: Internal Driver
Product Model
| Model No. | Length | Power | Lumen | Size(mm) | Carton Size(cm) | G.W/25PCS |
|---|---|---|---|---|---|---|
| SL-DGA00-48WT-G8-IP | 2ft | 9W | 1170lm | Ø26*L588 | L66*W22*H22 | 7.93KG |
| SL-DGA00-72WT-G8-IP | 3ft | 13W | 1690lm | Ø26*L892 | L96*W22*H22 | 10.85KG |
| SL-DGA00-96WT-G8-IP | 4ft | 18W | 2340lm | Ø26*L1198 | L125*W22*H22 | 12.75KG |
| SL-DGA00-120WT-G8-IP | 5ft | 25W | 3250lm | Ø26*L1498 | L156*W22*H22 | 15.05KG |
Drawing of Products
| 2feet(0.6m) | 3feet(0.9m) | 4feet(1.2m) | 5feet(1.5m) | |
|---|---|---|---|---|
| L | 588mm | 892mm | 1198mm | 1498mm |

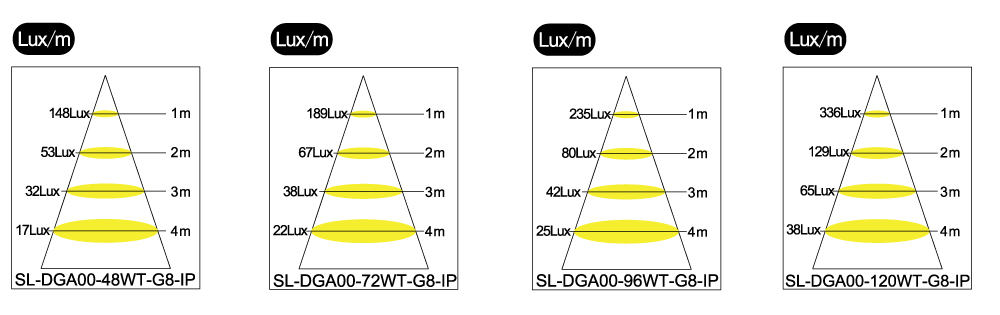

Photometric Data
Installation
