N805T T8 TUBE Details
Specifications:
●V0 fire-proof materials
●Efficacy:160lm/W, 130lm/ w, 110lm/ w
●LED Type: Epistar SMD2835
●Input Voltage: AC100-240V
●CCT:2800-3300K 3800-4300 5800-6400K
●CRI:>80
●PF:>0.9
●Beam Angle:320°
●Guarranty: 2 year
●Life Span: 30,000hours
●LED Driver: Internal Driver
●Working Temperature: -20 ·c- 48 ·c
Product Model
| Model No. | Length | Power | Lumen | Size(mm) | Carton Size(cm) | G.W/PCS |
|---|---|---|---|---|---|---|
| SL-DGA00-209WT-G8-T-NM | 2ft | 9W | 1440lm | Ø26*L588 | L66*W22*H22 | 7.55KG |
| SL-DGA00-312WT-G8-T-NM | 3ft | 12W | 1920lm | Ø26*L898 | L96*W22*H22 | 10.70KG |
| SL-DGA00-418WT-G8-T-NM | 4ft | 18W | 2880lm | Ø26*L1198 | L126*W22*H22 | 13.00KG |
| SL-DGA00-420WT-G8-T-NM | 4ft | 20W | 3200lm | Ø26*L1198 | L126*W22*H22 | 13.00KG |
| SL-DGA00-524WT-G8-T-NM | 5ft | 24W | 3840lm | Ø26*L1498 | L156*W22*H22 | 15.00KG |
*Remarks: 3000K ,4000K available,Only change "W" to "N","L" in Model No.
Drawing of Products
| 2feet(0.6m) | 3feet(0.9m) | 4feet(1.2m) | 5feet(1.5m) | 8feet(2.4m) | |
|---|---|---|---|---|---|
| A | 602mm | 906mm | 1213mm | 1513mm | 2362mm |
| B | 588mm | 892mm | 1198mm | 1498mm | 2348mm |

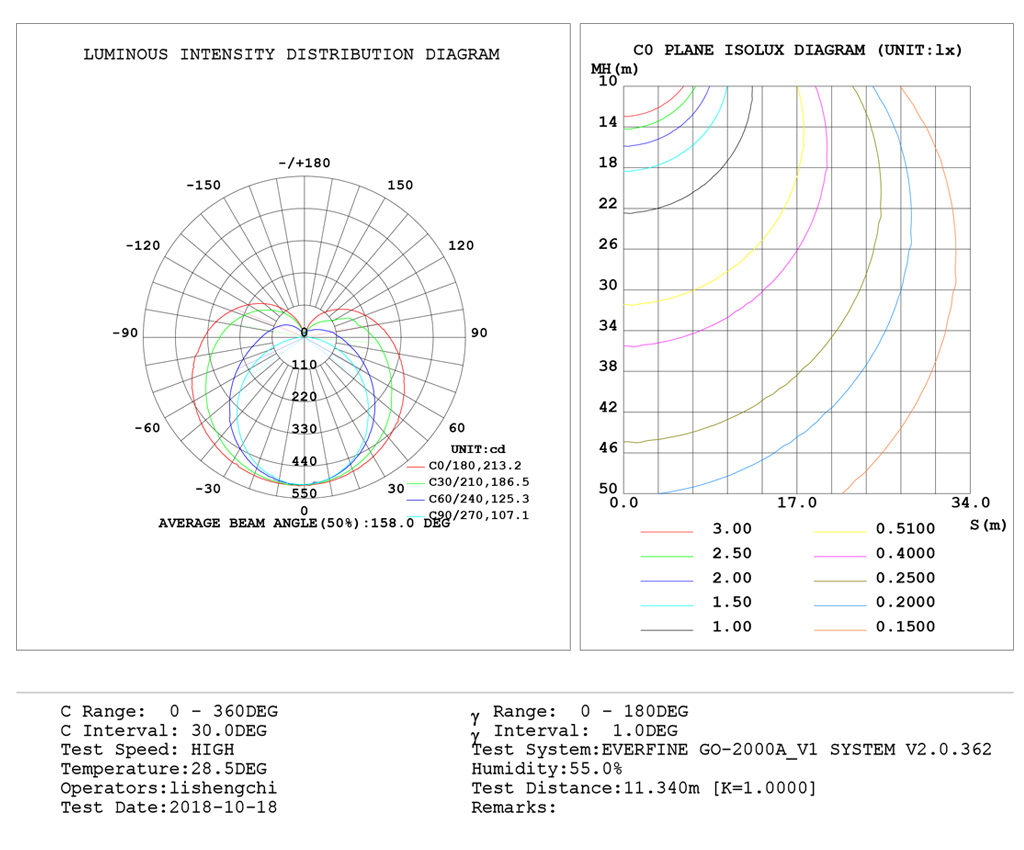

Photometric Data
