M901 Meat Display T8 TUBE Details
Performance Parameters
● Luminance Efficacy: Frosted Cover: 90lm/w，Clean Cover: 100lm/W
● Input Voltage:AC100-240V
● Power Consumption: 8W/12W/16W/22W/
● Color Temperature: 2700K~3600K
● CRI>95
● PF>0.9
● Beam Angle: 130°
● Operation Temperature: -20~48℃ (-4~104℉)
● LED Type:3528 RedLED+3528 White LED,Epistar
● Lifespan: 50,000hours
● Driver Type: Internal Driver
Product Model
| Model No. | Length | Power | Lumen | Size(mm) | Carton Size(cm) | G.W/25PCS |
|---|---|---|---|---|---|---|
| SL-DGA00/24-72RBT-G8 | 2ft | 8W | 720lm | Ø26*L588 | L66*W22*H22 | 9.80KG |
| SL-DGA00/24-96RBT-G8 | 3ft | 12W | 1080lm | Ø26*L892 | L96*W22*H22 | 11.00KG |
| SL-DGA00/24-192RBT-G8 | 4ft | 16W | 1440lm | Ø26*L1198 | L125*W22*H22 | 13.95KG |
| SL-DGA00/24-360RBT-G8 | 5ft | 22W | 1980lm | Ø26*L1498 | L156*W22*H22 | 17.45KG |
*Remarks: 3000K ,4000K available,Only change “W” to “N”,“L” in Model No.
Drawing of Products
| 2feet(0.6M) | 3feet(0.9M) | 4feet(1.2M) | 5feet(1.5M) | 8feet(2.4M) | |
|---|---|---|---|---|---|
| L2 | 602mm | 906mm | 1213mm | 1513mm | 2362mm |
| L1 | 588mm | 892mm | 1198mm | 1498mm | 2348mm |

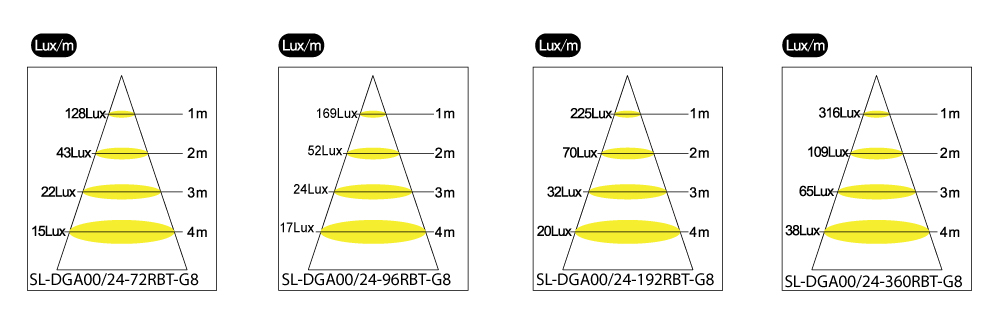

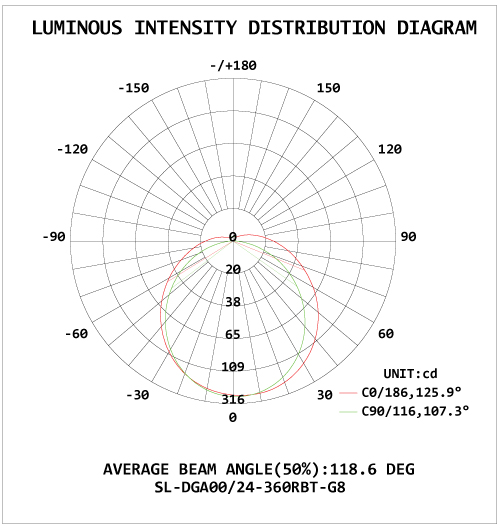

Photometric Data
Installation
