Microwave Sensor Details
Performance Parameters
● Luminance Efficacy: Frosted Cover: 100lm/w； Clear Cover: 110lm/W.
● Input Voltage: AC100-240V
● Power Consumption: 9W~30W
● Color Temperature: 3000K.4000K.5000K.6000
● CRI>80
● PF>0.95
● Beam Angle: 160°
● Operation Temperature: -20~40℃ (-4~104℉)
● Environment Humidity: ＜95%
● LED Type: 2835 LED,Epistar
● Lifespan: 30,000hours
● Driver Type: Internal Driver
Product Model
| Model No. | Length | Power | Lumen(lm) | Size(mm) | Carton Size(cm) | GW/25PCS |
|---|---|---|---|---|---|---|
| SL-DGA00-48WT-G8-S-WB | 2ft | 9W | 990 | Φ26*L588 | L66*W22*H22 | 8.2kg |
| SL-DGA00-96NT-G8-S-WB | 4ft | 18W | 1980 | Φ26*L1198 | L125*W22*H22 | 11.6kg |
| SL-DGA00-120NT-G8-S-WB | 5ft | 22W | 2420 | Φ26*L1498 | L156*W22*H22 | 13.8kg |
*Remarks: “W”means 6000K. 3000K ,4000K available, Only change “W” to “N”,“L” in Model No.
Drawing of Products
| 2feet(0.6M) | 3feet(0.9M) | 4feet(1.2M) | 5feet(1.5M) | |
|---|---|---|---|---|
| A | 602mm | 906mm | 1213mm | 1513mm |
| B | 588mm | 892mm | 1198mm | 1498mm |
Product Features
● Motion sensor inside end cap, 3.6G frequency.

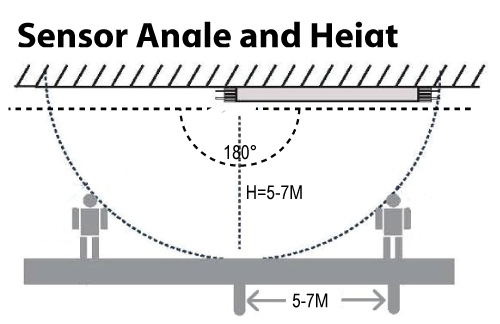

● Sensor distance: 6-7m( can be customized).
● Delay time: 30 seconds to 5 minutes( can be customized).
● Brightness on sensor mode: 0,30%,50%,100%( can be customized).
● CE ROHS Certification.
● Widely used in carpark,apartment buildings,school.

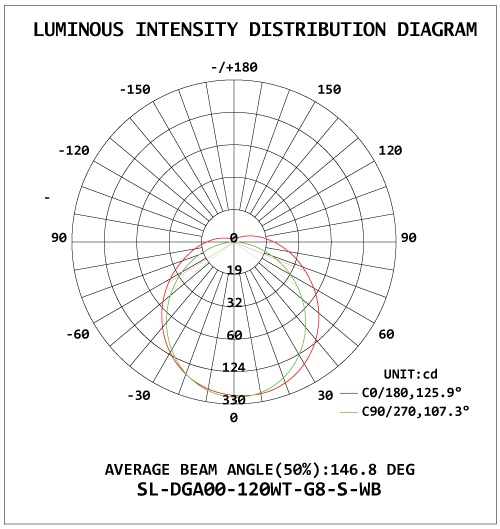

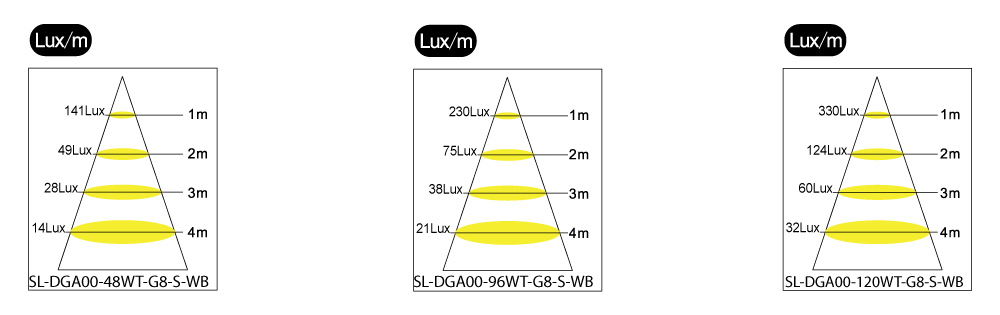

Photometric Data
 |  |
Installation
