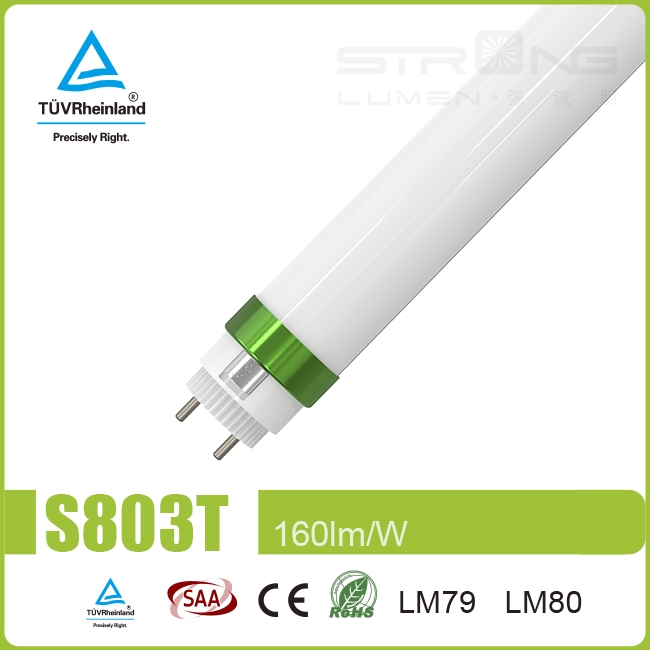

S803T T8 TUBE Details
Specifications:
● Frosted Cover: 160lm/w；
● Clear Cover:170lm/W
● Input Voltage:AC100-240V 50/60Hz
● Power6W/9W/12W/18W/20W/25W/30W/
● Color temperature:3000K 4000K 5000K 6000K
● Color Rendering Index: >80
● Power Factor:>0.95
● Beam Angle:140°
● Working Temperature:-20~48℃
● Storage Temp:-40~80℃
● Environment Humidity:＜95%
● LED Type:SMD2835
● Lifespan:>50,000hours
● On-off times:>100,000 Times● Rotatable end cap:Available
Product Features：
● Pretty and elegant appearance,G13 fixed or rotating end cap is available.
● Colorful metal rings available,Blue,Green,Silver,Red and Gold.
● ODM service available,Laser print customer LOGO and customer exclusive lable.
● 6063 Aluminum shell,Japan PC cover,long lifespan.
● Professional design of optics,no shadow,no light spot.
● Mainly used in factory,supermarket,carpark,hospital and school.
Product Model
| Model No. | Length | Power | Lumen(lm) | Size(mm) | Carton Size(cm) | G.W25PCS |
|---|---|---|---|---|---|---|
| SL-DGA00-206WT-G8-T | 2ft | 6W | 960 | Φ26*L588 | L66*W22*H22 | 6.7kg |
| SL-DGA00-209WT-G8-T | 2ft | 9W | 1440 | Φ26*L588 | L66*W22*H22 | 6.7kg |
| SL-DGA00-312WT-G8-T | 3ft | 12W | 1920 | Φ26*L892 | L95*W22*H22 | 10.6kg |
| SL-DGA00-412WT-G8-T | 4ft | 12W | 1920 | Φ26*L1198 | L125*W22*H22 | 10.6kg |
| SL-DGA00-418WT-G8-T | 4ft | 18W | 2880 | Φ26*L1198 | L125*W22*H22 | 12.9kg |
| SL-DGA00-420WT-G8-T | 4ft | 20W | 3200 | Φ26*L1198 | L156*W22*H22 | 12.9kg |
| SL-DGA00-520WT-G8-T | 5ft | 20W | 3200 | Φ26*L1498 | L156*W22*H22 | 14.9kg |
| SL-DGA00-525WT-G8-T | 5ft | 25W | 4000 | Φ26*L1498 | L156*W22*H22 | 14.9kg |
| SL-DGA00-530WT-G8-T | 5ft | 30W | 4800 | Φ26*L1498 | L156*W22*H22 | 15.0kg |
*Remarks: “W”means 6000K. 3000K ,4000K available, Only change “W” to “N”,“L” in Model No.
Drawing of Products
| 2feet(0.6m) | 3feet(0.9m) | 4feet(1.2m) | 5feet(1.5m) | 8feet(2.4m) | |
|---|---|---|---|---|---|
| A | 602mm | 906mm | 1213mm | 1513mm | 2362mm |
| B | 588mm | 892mm | 1198mm | 1498mm | 2348mm |
Photometric Data
Installation
Case
General fluorescent tube replacment，e.g. Offics,Retail,Education, Commercial & Industrial
